Band Math & Vegetation Indices#

Band Math Basics#

Band math is a way to combine bands of remotely sensed data to create new bands that highlight certain features. Calculations can be as simple as adding or subtracting bands, or more complex like calculating vegetation indices. Each operation is done on a per-pixel basis, so the output will have the same spatial extent and resolution as the input.

Here is a visual example of a band math operation combinine three bands of data b1, b2, and b3 to create a new single output.

Band Math in Geowombat#

Geowombat has a number of functions to perform band math operations.

Arithmetic operations#

We can perform basic arithmetic operations on bands like addition, subtraction, multiplication, and division. For example, we can combine the red and green bands to create a new band that highlights vegetation.

import geowombat as gw
from geowombat.data import rgbn
import matplotlib.pyplot as plt

/home/mmann1123/miniconda3/envs/pygis/lib/python3.11/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

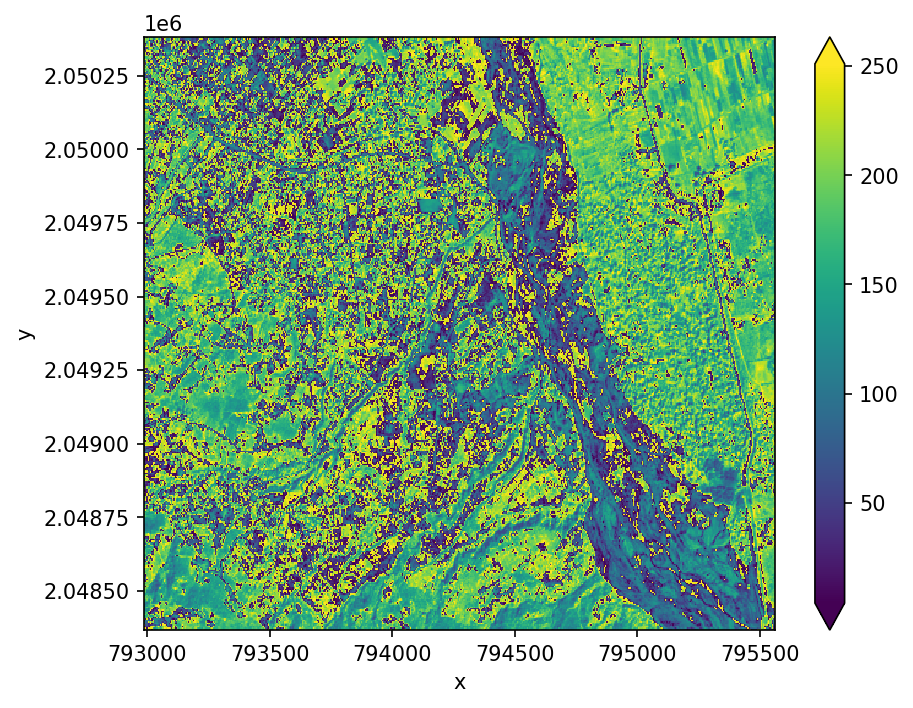

Calculate a new band adding the red and nir bands, returning an Xarray.DataArray.

fig, ax = plt.subplots(dpi=150)

with gw.open(rgbn, band_names=['red','green','blue','nir']) as ds:
    add_nir_red = ds.sel(band='nir') + ds.sel(band='red')
    add_nir_red.plot(robust=True, ax=ax)
    print(add_nir_red)
plt.tight_layout(pad=1)

<xarray.DataArray (y: 403, x: 515)> Size: 208kB
dask.array<add, shape=(403, 515), dtype=uint8, chunksize=(64, 64), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 4kB 7.93e+05 7.93e+05 7.93e+05 ... 7.956e+05 7.956e+05
  * y        (y) float64 3kB 2.05e+06 2.05e+06 2.05e+06 ... 2.048e+06 2.048e+06

../_images/2c79ac64ef66addfd3c968c4e904a82ef82f15d28dea1f444c4942c65bdc35ac.png

These simple operations can be combined with other geowombat functions to create more complex outputs like vegetation indices described below.

Vegetation indices#

Healthy vegetation (with chlorophyll) reflects more near-infrared (NIR) and green light compared to other wavelengths and absorbs more red and blue light. We can use this effect to generate a number of vegetation indices including the following:

Enhanced Vegetation Index (EVI)#

EVI is an index of vegetation that is optimized to improve sensitivity to high biomass and better handling of background and atmospheric influences. It is calculated with the formula below using the Near Infrared (NIR), Red and Blue bands. There are also a number of parameters like \(C_{1}\) that are specific to each sensor. Luckily geowombat handles this all for you!

\[EVI = G\times \frac{NIR-Red}{NIR+C_{1}\times Red-C_{2}\times Blue+L}\]

The result of this formula generates a value between -1 and +1. Low reflectance (low values) in the red channel and high reflectance in the NIR channel will yield a high EVI value.

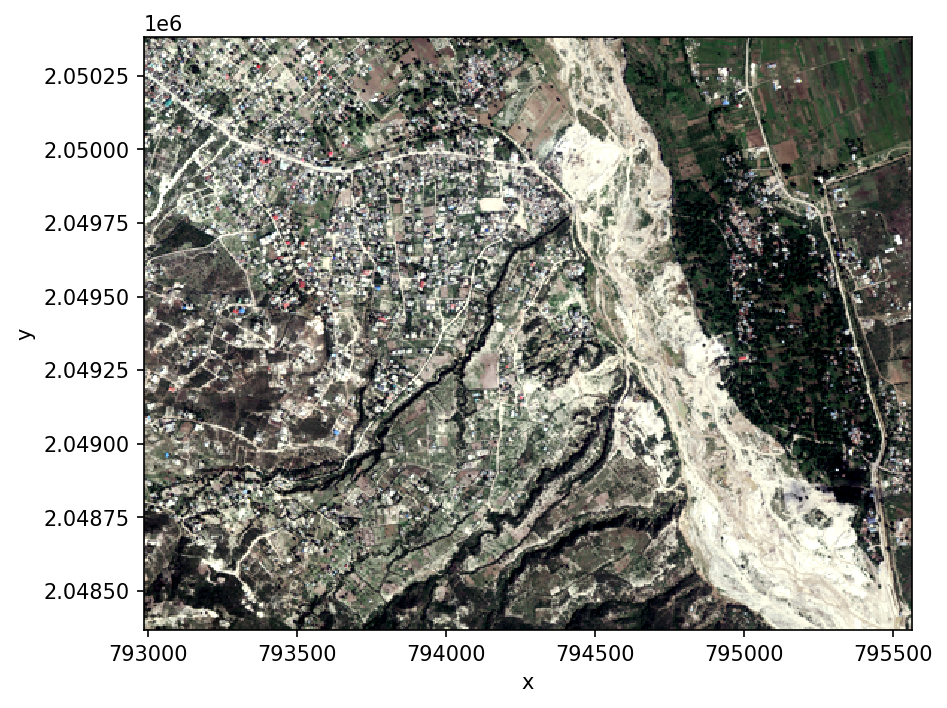

Let’s start by looking at the original image in true color.

import geowombat as gw
from geowombat.data import rgbn
import matplotlib.pyplot as plt


fig, ax = plt.subplots(dpi=150)

with gw.config.update(sensor='rgbn', scale_factor=0.0001):
    with gw.open(rgbn) as ds:
        ds.sel(band=['blue', 'green', 'red']).plot.imshow(robust=True)
plt.tight_layout(pad=1)

../_images/74235348c39ae3b58baaf93d3d3df719b0b5d7b389cc568f5f41127885c2ddba.png

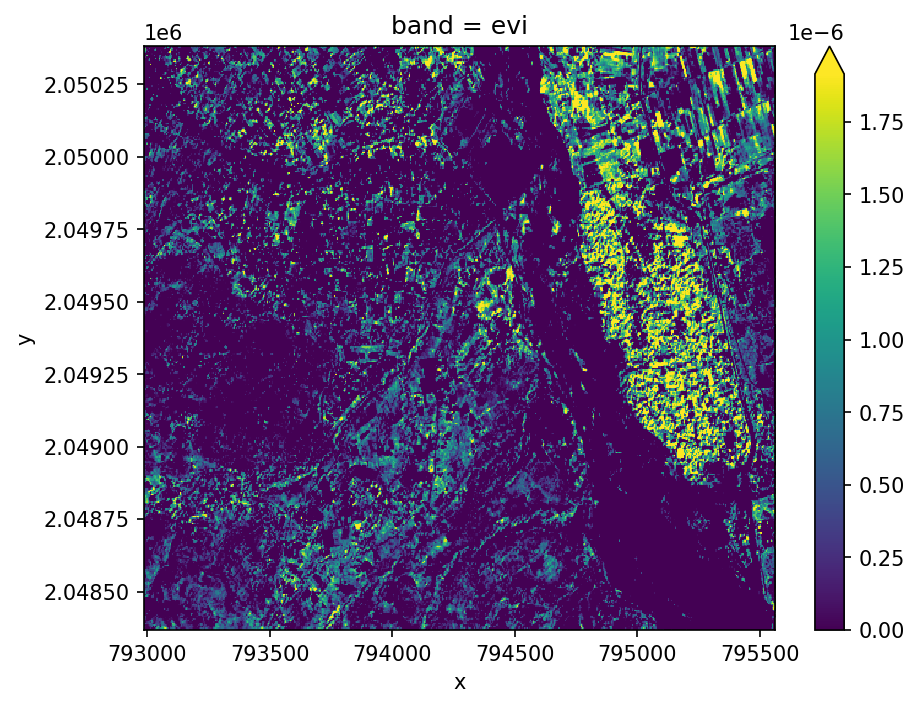

Calculate a vegetation index, returning an Xarray.DataArray.

with gw.open(rgbn) as ds:
    print(ds)
    evi = ds.gw.evi(sensor='rgbn', scale_factor=0.0001)
    print(evi)

<xarray.DataArray (band: 4, y: 403, x: 515)> Size: 830kB
dask.array<open_rasterio-cf585e9056fe7feecc49f8bafd189f4f<this-array>, shape=(4, 403, 515), dtype=uint8, chunksize=(4, 64, 64), chunktype=numpy.ndarray>
Coordinates:
  * band     (band) int64 32B 1 2 3 4
  * x        (x) float64 4kB 7.93e+05 7.93e+05 7.93e+05 ... 7.956e+05 7.956e+05
  * y        (y) float64 3kB 2.05e+06 2.05e+06 2.05e+06 ... 2.048e+06 2.048e+06
Attributes: (12/14)
    transform:           (5.0, 0.0, 792988.0, 0.0, -5.0, 2050382.0)
    crs:                 32618
    res:                 (5.0, 5.0)
    is_tiled:            1
    nodatavals:          (nan, nan, nan, nan)
    _FillValue:          nan
    ...                  ...
    filename:            /home/mmann1123/miniconda3/envs/pygis/lib/python3.11...
    resampling:          nearest
    AREA_OR_POINT:       Area
    DataType:            Generic
    _data_are_separate:  0
    _data_are_stacked:   0
<xarray.DataArray (band: 1, y: 403, x: 515)> Size: 2MB
dask.array<where, shape=(1, 403, 515), dtype=float64, chunksize=(1, 64, 64), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 4kB 7.93e+05 7.93e+05 7.93e+05 ... 7.956e+05 7.956e+05
  * y        (y) float64 3kB 2.05e+06 2.05e+06 2.05e+06 ... 2.048e+06 2.048e+06
  * band     (band) <U3 12B 'evi'
Attributes: (12/18)
    transform:           (5.0, 0.0, 792988.0, 0.0, -5.0, 2050382.0)
    crs:                 32618
    res:                 (5.0, 5.0)
    is_tiled:            1
    nodatavals:          (nan,)
    _FillValue:          nan
    ...                  ...
    _data_are_separate:  0
    _data_are_stacked:   0
    pre-scaling:         0.0001
    sensor:              rgbn
    vi:                  evi
    drange:              (0, 1)

Or use the configuration context to set parameters.

fig, ax = plt.subplots(dpi=150)

with gw.config.update(sensor='rgbn', scale_factor=0.0001):
    with gw.open(rgbn) as ds:
        ds.sel(band=['blue', 'green', 'red']).plot.imshow(robust=True)
        evi = ds.gw.evi()
        evi.plot(robust=True)
plt.tight_layout(pad=1)

../_images/e57949fdad024a654f7aa09e55bdb6526a17919ae963c64524b12a955dece004.png

Two-band Enhanced Vegetation Index (EVI2)#

We can also calcuate an approximation of EVI with two bands using \(G\times ((NIR-RED)/(L+NIR+C\times Red))\)

This allows us to extend EVI calculations back in time using AVHRR, and avoids some problems with the blue band which tends to be noisy.

fig, ax = plt.subplots(dpi=150)

with gw.config.update(sensor='rgbn', scale_factor=0.0001):
    with gw.open(rgbn) as ds:
        evi2 = ds.gw.evi2()
        evi2.plot(robust=True, ax=ax)
plt.tight_layout(pad=1)

../_images/58db46c732435e7d17aecc6789e480038c7e5e6d5667666c1a1f6654f1c26a3c.png

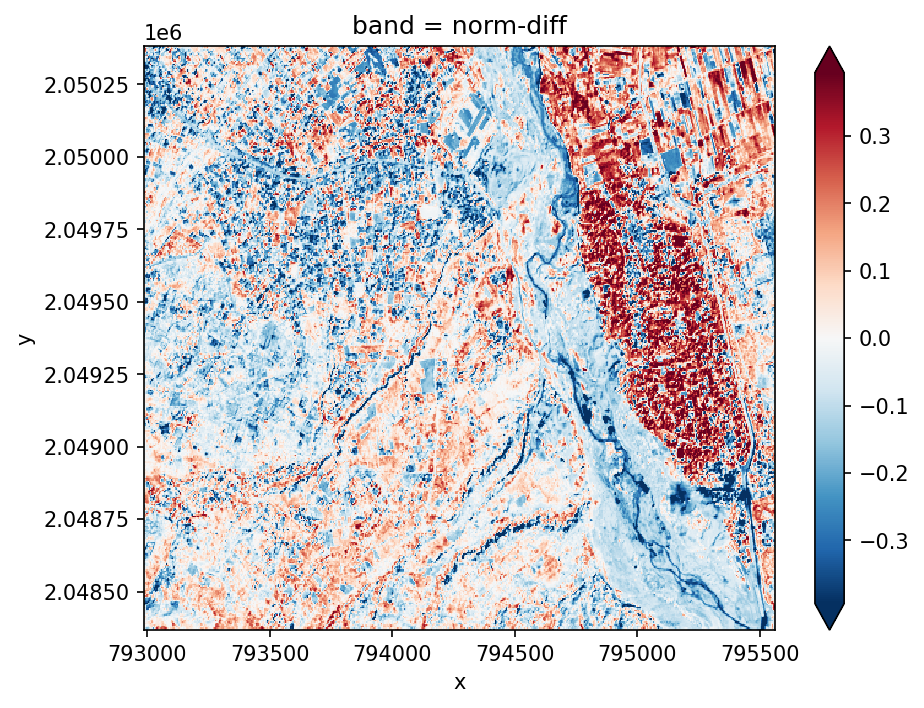

Normalized Difference Indices (NDVI)#

The simplest vegetation metric is NDVI, which is just the normalized difference between the Red and NIR bands. It is calculated as follows \(\frac{NIR-Red}{NIR+Red}\).

We can calculate it using the generic norm_diff function for any two-band combination.

fig, ax = plt.subplots(dpi=150)

with gw.config.update(sensor='rgbn'):
    with gw.open(rgbn) as ds:
        ndvi = ds.gw.norm_diff('red', 'nir')
        ndvi.plot(robust=True)
plt.tight_layout(pad=1)

../_images/6deb7cc3d7f6cfaeeb06d628cb5df2166447e00f7fe507328d470202ab30edb2.png

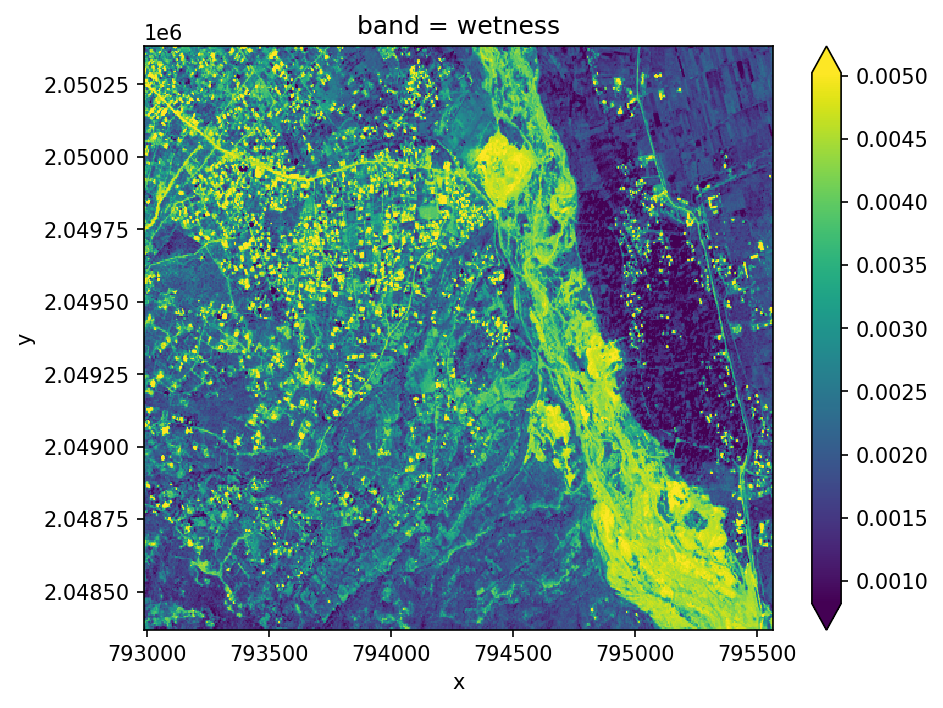

Tasseled Cap Transformations#

Tasseled cap tranform uses a linear equation to try to differentiate different components of the spectrum that are of interest for vegetation dynamics such as phenological stages. The output includes three bands including brightness, greeness for vegetation, and wetness as an idicator of soil and canopy moisture. Use .sel(band='wetness') to select them individually.

fig, ax = plt.subplots(dpi=150)

with gw.config.update(sensor='qb', scale_factor=0.0001):
    with gw.open(rgbn) as ds:
        tcap = ds.gw.tasseled_cap()
        print('bands', tcap.band.values)
        tcap.sel(band='wetness').plot(robust=True, ax=ax)
plt.tight_layout(pad=1)

bands ['brightness' 'greenness' 'wetness']

../_images/ef88176e5877d3cf2e06294859e9a92f057a8e5ae5405e81cd689c66e729ec6d.png
