Learning Objectives

Utilize different vector overlays and understand the differences between each
Join data based on their geographic location and explore the different join types

Review

Spatial Overlays and Joins#

Combining two or more datasets together is a fundamental aspect of GIS. Using geopandas, we can create new geometries from existing datasets by overlaying them on top of each other, identifying where they do and do not overlap, and deciding what parts we want to extract from these overlays. For each of these new shapes, the attribute data from the existing constituent datasets are also combined together. 1, 2

In this chapter, we will focus on vector overlays, which involve combining vector data. We’ll explore five types of vector overlays and merging: union, intersection, difference (erase), identity, and spatial join.

Setup#

First, let’s import the necessary modules (click the + below to show code cell).

# Import modules
import geopandas as gpd
import matplotlib.pyplot as plt

To illustrate these geoprocessing tools, we will utilize shapefiles of San Francisco Bay Area county boundaries, Bay Area watershed boundaries, and wells within the Bay Area and the surrounding 50 km. We will load in the data and reproject the data (click the + below to show code cell).

Important

All the data must have the same coordinate system in order for extraction to work correctly.

# Load data

# County boundaries
# Source: https://opendata.mtc.ca.gov/datasets/san-francisco-bay-region-counties-clipped?geometry=-125.590%2C37.123%2C-119.152%2C38.640
counties = gpd.read_file("../_static/e_vector_shapefiles/sf_bay_counties/sf_bay_counties.shp")

# Watershed boundaries
# Source: https://gis.data.ca.gov/datasets/CDFW::epa-surf-your-watershed-ds732?geometry=-128.711%2C36.474%2C-115.835%2C39.504
# Modified by author so that only the watersheds with centroids in the Bay Area counties were kept
watersheds = gpd.read_file("../_static/e_vector_shapefiles/sf_bay_watersheds/sf_bay_watersheds.shp")

# Well locations
# Source: https://gis.data.ca.gov/datasets/3a3e681b894644a9a95f9815aeeeb57f_0?geometry=-123.143%2C36.405%2C-119.230%2C37.175
# Modified by author so that only the well locations within the counties and the surrounding 50 km were kept
wells = gpd.read_file("../_static/e_vector_shapefiles/sf_bay_wells_50km/sf_bay_wells_50km.shp")

# Reproject data to NAD83(HARN) / California Zone 3
# https://spatialreference.org/ref/epsg/2768/
proj = 2768
counties = counties.to_crs(proj)
watersheds = watersheds.to_crs(proj)
wells = wells.to_crs(proj)

We’ll define some functions to make displaying and mapping our results a bit easier (click the + below to show code cell).

def display_table(table_name, attribute_table):
    '''Display the first and last two rows of attribute table.'''

    # Print title
    print("Attribute Table: {}".format(table_name))

    # Print number of rows and columns
    print("\nTable shape (rows, columns): {}".format(attribute_table.shape))

    # Display first two rows of attribute table
    print("\nFirst two rows:")
    display(attribute_table.head(2))

    # Display last two rows of attribute table
    print("\nLast two rows:")
    display(attribute_table.tail(2))


def plot_overlay(overlay_type, overlay_result):
    '''Plot the overlay result on a map and add the outlines of the original shapefiles on top.'''

    # Create subplots
    fig, ax = plt.subplots(1, 1, figsize = (10, 10))

    # Plot overlay data
    overlay_result.plot(ax = ax, cmap = 'Set2', edgecolor = 'black')

    # Plot outlines of original shapefiles
    counties.plot(ax = ax, color = 'none', edgecolor = 'dimgray')
    watersheds.plot(ax = ax, color = 'none', edgecolor = 'dodgerblue')

    # Stylize plots
    plt.style.use('bmh')

    # Set title
    ax.set_title('San Francisco Bay Area County and Watershed Boundaries\n{}'.format(overlay_type), fontdict = {'fontsize': '15', 'fontweight' : '3'})


def plot_merge(merge_type, merge_result, merge_vector):
    '''Plot the merge result on a map.'''

    # Create subplots
    fig, ax = plt.subplots(1, 1, figsize = (10, 10))

    # Plot data depending on vector type
    # For points
    if merge_vector == "point":

        # Plot data
        counties.plot(ax = ax, color = 'none', edgecolor = 'dimgray')
        merge_result.plot(ax = ax, marker = 'o', color = 'dodgerblue', markersize = 3)

    # For polygons
    else:

        # Plot data
        merge_result.plot(ax = ax, cmap = 'Set2', edgecolor = 'black')

    # Stylize plots
    plt.style.use('bmh')

    # Set title
    ax.set_title('San Francisco Bay Area County Boundaries and Well Locations\n{}'.format(merge_type), fontdict = {'fontsize': '15', 'fontweight' : '3'})

Overlays#

For the first four, we can use the overlay function in geopandas. We simply change the argument for the how parameter to the overlay of our choosing.

We will use the county boundaries and watershed boundaries shapefiles in these examples. The overlays will allow us to see what areas are only in a county, only in a watershed, or in both.

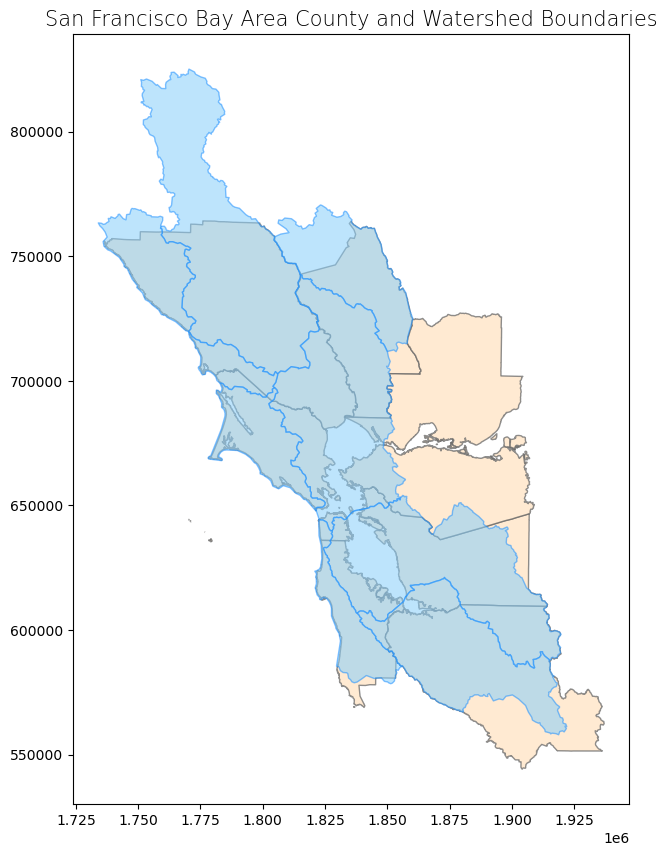

Let’s briefly examine the attribute table of our shapefiles and plot the data so that we know what we’re working with.

# Create subplots
fig, ax = plt.subplots(1, 1, figsize = (10, 10))

# Plot data
counties.plot(ax = ax, color = 'bisque', edgecolor = 'dimgray', alpha = 0.75)
watersheds.plot(ax = ax, color = 'lightskyblue', edgecolor = 'dodgerblue', alpha = 0.55)

# Stylize plots
plt.style.use('bmh')

# Set title
ax.set_title('San Francisco Bay Area County and Watershed Boundaries', fontdict = {'fontsize': '15', 'fontweight' : '3'})

Text(0.5, 1.0, 'San Francisco Bay Area County and Watershed Boundaries')

# Print attribute table
display(counties)

	coname	geometry
0	Alameda County	MULTIPOLYGON (((1860234.837 612219.122, 186007...
1	Contra Costa County	MULTIPOLYGON (((1836501.066 656512.837, 183649...
2	Marin County	MULTIPOLYGON (((1830493.060 653832.167, 183050...
3	Napa County	POLYGON ((1860171.549 724651.231, 1860170.736 ...
4	San Francisco County	MULTIPOLYGON (((1779231.793 635380.766, 177918...
5	San Mateo County	MULTIPOLYGON (((1836712.268 569216.860, 183671...
6	Santa Clara County	MULTIPOLYGON (((1858733.082 607586.450, 185874...
7	Solano County	MULTIPOLYGON (((1875491.908 673077.900, 187549...
8	Sonoma County	MULTIPOLYGON (((1746855.532 743026.706, 174685...

# Print attribute table
display(watersheds)

	CUNAME	geometry
0	RUSSIAN	POLYGON ((1772952.612 823099.656, 1775209.737 ...
1	UPPER_PUTAH	POLYGON ((1825517.283 769282.042, 1826065.366 ...
2	GUALALA-SALMON	POLYGON ((1747656.800 769294.908, 1748144.659 ...
3	SAN_PABLO_BAY	POLYGON ((1815758.957 741414.318, 1816340.883 ...
4	BODEGA_BAY	POLYGON ((1778048.116 714367.855, 1780284.096 ...
5	TOMALES-DRAKE_BAYS	POLYGON ((1783925.368 698933.179, 1784977.305 ...
6	SAN_FRANCISCO_BAY	POLYGON ((1856614.017 653898.716, 1856857.793 ...
7	SAN_FRANCISCO_COASTAL_SOUTH	POLYGON ((1826732.900 640369.438, 1827321.624 ...
8	COYOTE	POLYGON ((1875229.662 619208.108, 1875664.986 ...

Union#

With how='union', all data (all geometries regardless of overlap) is kept. 1

Looking at the attribute table, we see that the attributes from both individual datasets have been combined. The areas that are unique to one dataset (no overlap) have NaN as values in the fields that originated from the other dataset. 1, 2

# Get union
union_result = gpd.overlay(counties, watersheds, how = 'union')

# Print head and tail of attribute table
display_table(table_name = "Union", attribute_table = union_result)

Attribute Table: Union

Table shape (rows, columns): (46, 3)

First two rows:

/tmp/ipykernel_2983314/3249878955.py:2: UserWarning: `keep_geom_type=True` in overlay resulted in 7 dropped geometries of different geometry types than df1 has. Set `keep_geom_type=False` to retain all geometries
  union_result = gpd.overlay(counties, watersheds, how = 'union')

	coname	CUNAME	geometry
0	Alameda County	SAN_PABLO_BAY	POLYGON ((1844333.772 657330.481, 1844341.139 ...
1	Contra Costa County	SAN_PABLO_BAY	MULTIPOLYGON (((1850629.396 650637.866, 185062...

Last two rows:

	coname	CUNAME	geometry
44	NaN	SAN_FRANCISCO_COASTAL_SOUTH	MULTIPOLYGON (((1853776.327 587836.804, 185377...
45	NaN	COYOTE	MULTIPOLYGON (((1915414.106 583617.325, 191566...

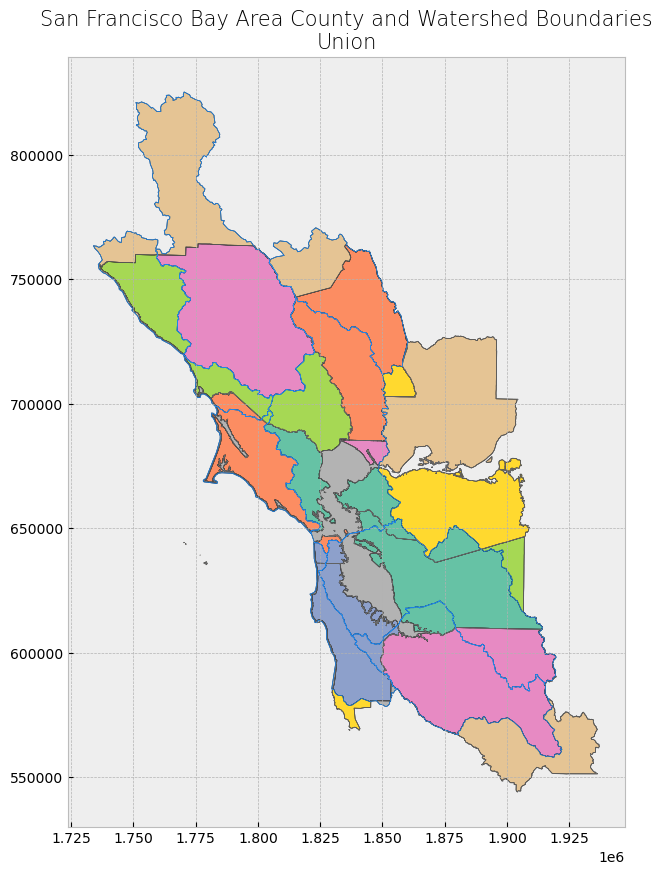

Next, we can map the data, filling in the areas with color that have been retained. As the plot shows, no data was removed.

# Plot overlay
plot_overlay(overlay_type = "Union", overlay_result = union_result)

Intersection#

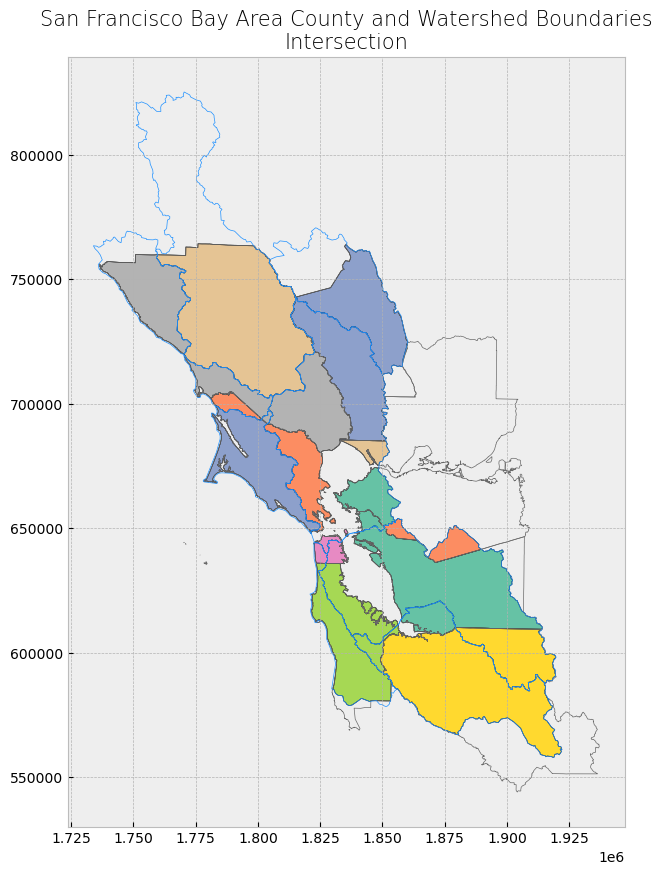

With how='intersection', only the areas where all datasets contain data (have geometries) are combined together. 1

Because there are no areas unique to one dataset, notice how the attribute table of the combined dataset does not have any NaN values. When mapping the intersection overlay, we can see that any areas that did not have any overlay were discarded (areas with an outline but no fill). Areas covered by the county and watershed boundaries datasets are kept (shown in color). 1, 2

# Get intersection
intersection_result = gpd.overlay(counties, watersheds, how = 'intersection')

# Print head and tail of attribute table
display_table(table_name = "Intersection", attribute_table = intersection_result)

# Plot overlay
plot_overlay(overlay_type = "Intersection", overlay_result = intersection_result)

Attribute Table: Intersection

Table shape (rows, columns): (28, 3)

First two rows:

	coname	CUNAME	geometry
0	Alameda County	SAN_PABLO_BAY	POLYGON ((1844333.772 657330.481, 1844341.139 ...
1	Contra Costa County	SAN_PABLO_BAY	MULTIPOLYGON (((1850629.396 650637.866, 185062...

Last two rows:

	coname	CUNAME	geometry
26	Santa Clara County	SAN_FRANCISCO_COASTAL_SOUTH	MULTIPOLYGON (((1855603.246 585515.731, 185557...
27	Sonoma County	GUALALA-SALMON	MULTIPOLYGON (((1770288.265 719971.781, 177026...

Identity#

With how='identity', data from both layers are combined, but only the geometries that are unique to the first dataset or are covered by both datasets are kept. Any geometries unique to the second dataset (no overlapping with the first dataset) are discarded. 1

Looking at the attribute table, the fields from the individual datasets have been combined. For those geometries unique to the first dataset, the fields that came from the second dataset have NaN as values.

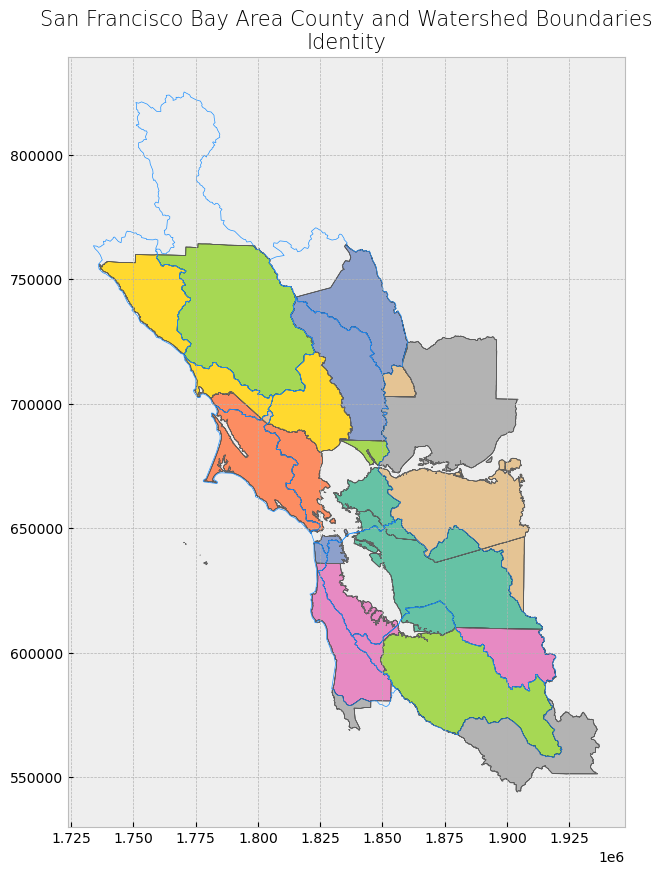

Looking at the map, we see all combined geometries except for the areas that are unique to the second dataset (watershed boundaries dataset).

# Get identity
identity_result = gpd.overlay(counties, watersheds, how = 'identity')

# Print head and tail of attribute table
display_table(table_name = "Identity", attribute_table = identity_result)

# Plot overlay
plot_overlay(overlay_type = "Identity", overlay_result = identity_result)

Attribute Table: Identity

Table shape (rows, columns): (37, 3)

First two rows:

/tmp/ipykernel_2983314/1037757824.py:2: UserWarning: `keep_geom_type=True` in overlay resulted in 7 dropped geometries of different geometry types than df1 has. Set `keep_geom_type=False` to retain all geometries
  identity_result = gpd.overlay(counties, watersheds, how = 'identity')

	coname	CUNAME	geometry
0	Alameda County	SAN_PABLO_BAY	POLYGON ((1844333.772 657330.481, 1844341.139 ...
1	Contra Costa County	SAN_PABLO_BAY	MULTIPOLYGON (((1850629.396 650637.866, 185062...

Last two rows:

	coname	CUNAME	geometry
35	Solano County	NaN	MULTIPOLYGON (((1879889.331 727073.884, 188002...
36	Sonoma County	NaN	MULTIPOLYGON (((1804663.401 758088.289, 180471...

Difference (Erase)#

With how='difference', the areas covered by the second dataset is used to “cut out” or erase those corresponding areas in the first dataset. In other words, only the areas in the first dataset that do not overlap with the second dataset are kept. 1, 2

../_images/vector_erase.jpg — Fig. 56 Difference (erase) removes geometries that intersect with each other. In the figure above, B is used to cut out and remove a portion of A.#

Looking at the attribute table, the fields from the second dataset do not appear in the combined dataset. The second dataset was “combined” with the first dataset by discarding some data (altering the geometry) from the first dataset.

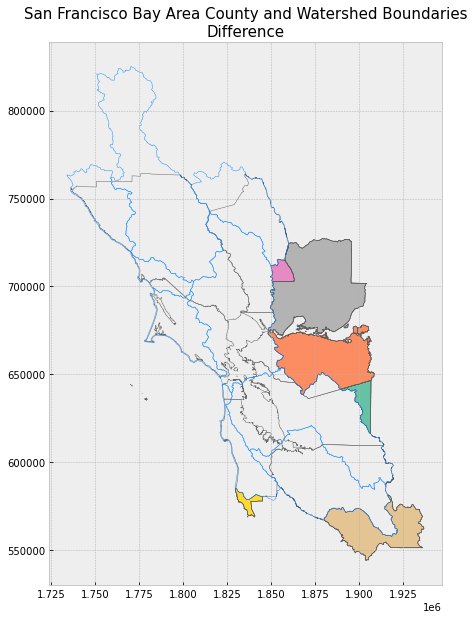

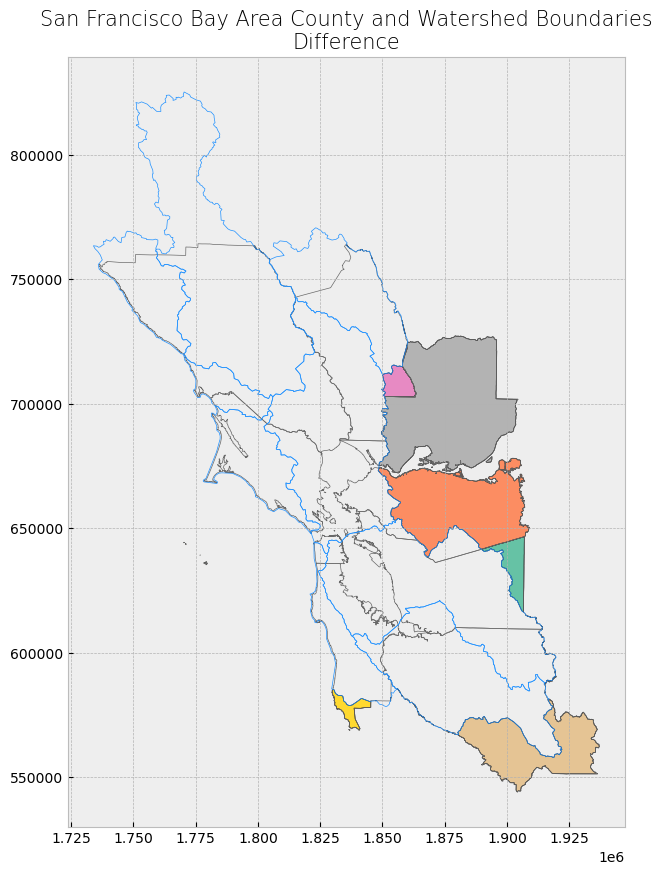

Looking at the map, we only see areas of the first dataset (county dataset) that are not covered by the second dataset (watershed boundaries dataset).

# Get difference
difference_result = gpd.overlay(counties, watersheds, how = 'difference')

# Print head and tail of attribute table
display_table(table_name = "Difference", attribute_table = difference_result)

# Plot overlay
plot_overlay(overlay_type = "Difference", overlay_result = difference_result)

Attribute Table: Difference

Table shape (rows, columns): (9, 2)

First two rows:

/tmp/ipykernel_2983314/1761870941.py:2: UserWarning: `keep_geom_type=True` in overlay resulted in 7 dropped geometries of different geometry types than df1 has. Set `keep_geom_type=False` to retain all geometries
  difference_result = gpd.overlay(counties, watersheds, how = 'difference')

	coname	geometry
0	Alameda County	MULTIPOLYGON (((1913838.781 610713.920, 191389...
1	Contra Costa County	MULTIPOLYGON (((1867018.499 674101.332, 186722...

Last two rows:

	coname	geometry
7	Solano County	MULTIPOLYGON (((1879889.331 727073.884, 188002...
8	Sonoma County	MULTIPOLYGON (((1804663.401 758088.289, 180471...

Merge#

Spatial Join#

With spatial join, attributes from one dataset are appended to those in another dataset based on a specified relative spatial relationship. 3, 4

In geopandas, we use the sjoin() function. In addition to passing the datasets as arguments, and we also pass arguments for two parameters op and how. The op parameter specifies the spatial relationship needed in order for the attributes of one feature to be joined to another. 3

The following spatial relationships are available in geopandas:

Spatial Relationship	Description
`contains`	geometry’s points are not to the exterior of the other geometry, provided that the geometry’s interior contains at least one point of the other geometry’s interior
`crosses`	geometry’s interior intersects that of the other geometry, provided that the geometry does not contain the other and the dimension of the intersection is less than the dimension of either geometry
`intersects`	geometry’s boundary or interior touches or crosses any part of the other geometry
`overlaps`	geometry shares at least one point, but not all points, with the other geometry, provided that the geometries and the intersection of their interiors all have the same dimensions
`touches`	geometry shares at least one point with the other geometry, provided that no part of the geometry’s interior intersects with the other geometry
`within`	geometry is enclosed in the other geometry (geometry’s boundary and interior intersects with the other geometry’s interior only)

Note

These relationships are defined from the first dataset to the second dataset (for example, contains specifies that a feature from the first dataset must contain a feature from the second dataset for a join to occur).

Warning

Depending on the argument specified in the op parameter, a geometry that falls directly on the boundary of another geometry may be counted, may be counted twice, or may not be counted at all. For example, if a point falls on a boundary between two geometries, op = "intersects" will count that point twice and allocate (join) it to both geometries that share the boundary, whereas op = "within" will not count or allocate the point at all.

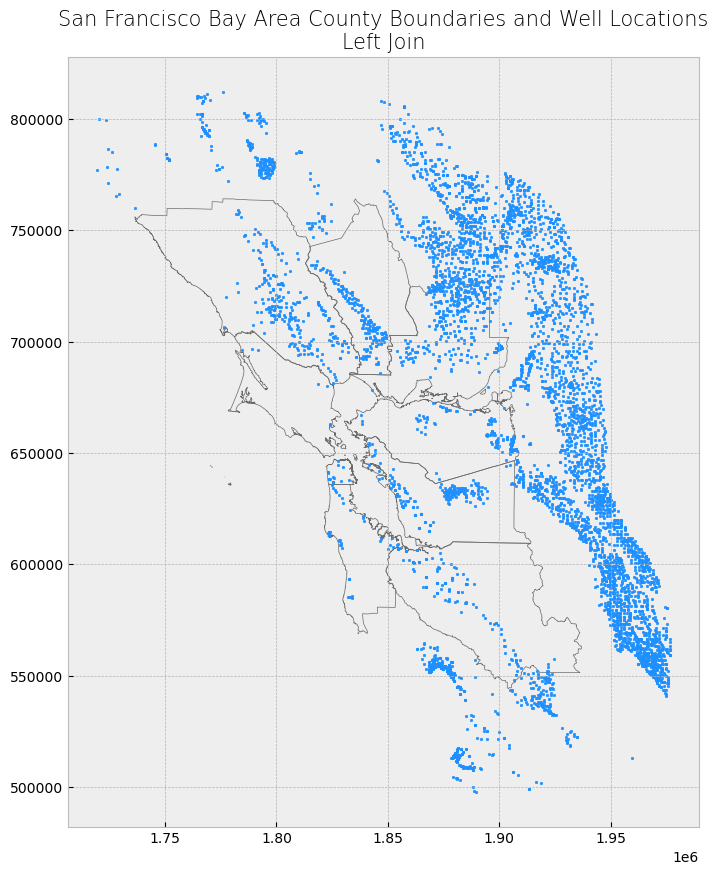

Just like regular table joins, there are multiple types of spatial joins, which determine which features from both datasets are kept in the output dataset. This is specified using the how parameter. 3, 4

Join Type	Description
`left`	all features from the first or left dataset are kept, regardless if the feature met the specified spatial relationship criteria for a join/regardless if there is a match

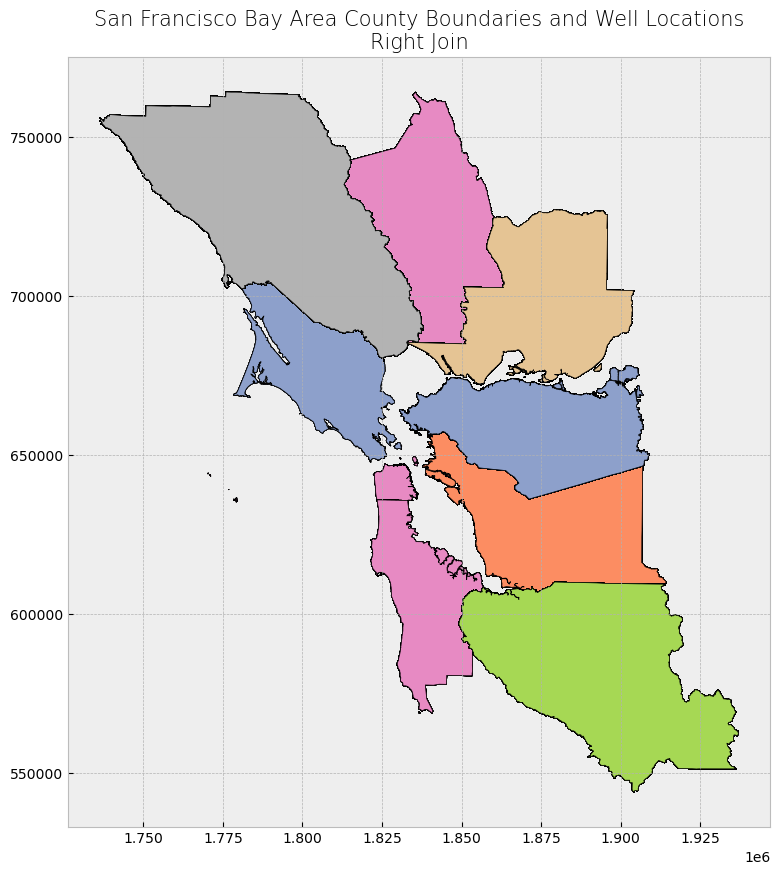

`right`	all features from the second or right dataset are kept, regardless if the feature met the specified spatial relationship for a join

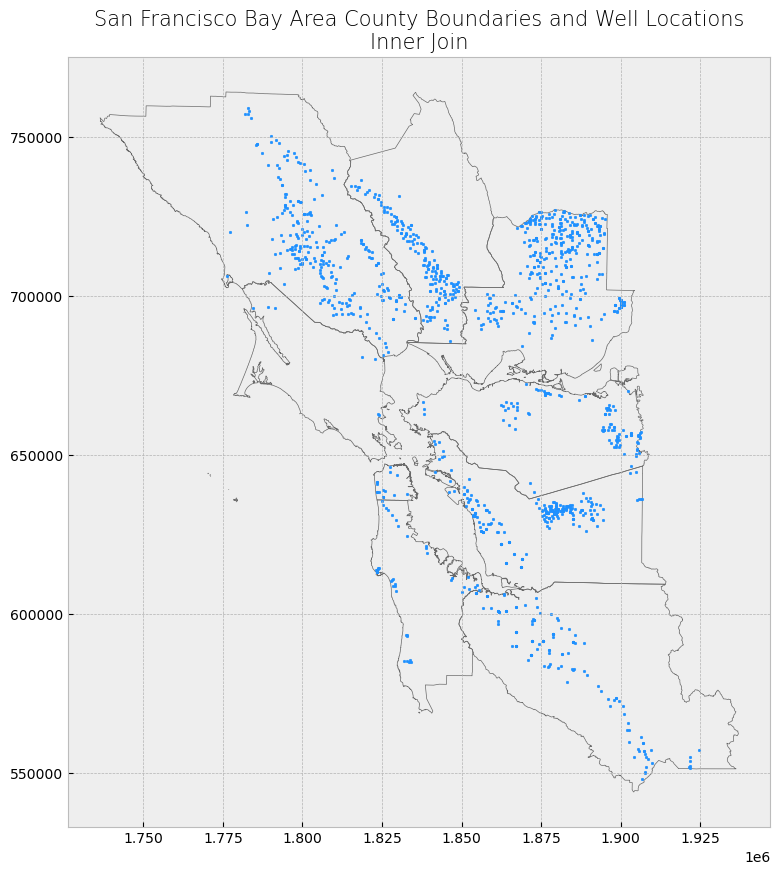

`inner`	only features from both datasets that met the spatial relationship and were joined are kept; the geometries from the first or left dataset are used for the join

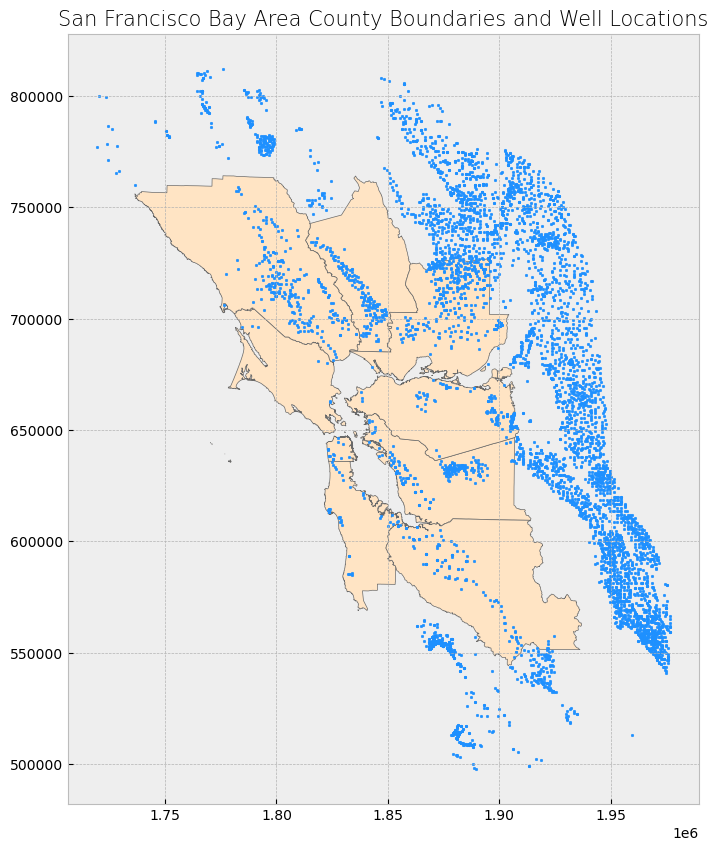

We’ll illustrate this geoprocessing using the county boundaries shapefile and the well locations shapefile. Let’s quickly examine the wells attribute table and plot both datasets.

# Print head and tail of attribute table
display_table(table_name = "San Francisco Bay Area and Surrounding Area Wells", attribute_table = wells)

# Create subplots
fig, ax = plt.subplots(1, 1, figsize = (10, 10))

# Plot data
counties.plot(ax = ax, color = 'bisque', edgecolor = 'dimgray')
wells.plot(ax = ax, marker = 'o', color = 'dodgerblue', markersize = 3)

# Stylize plots
plt.style.use('bmh')

# Set title
ax.set_title('San Francisco Bay Area County Boundaries and Well Locations', fontdict = {'fontsize': '15', 'fontweight' : '3'})

Attribute Table: San Francisco Bay Area and Surrounding Area Wells

Table shape (rows, columns): (6037, 5)

First two rows:

	WELL_NAME	WELL_USE	WELL_TYPE	WELL_DEPTH	geometry
0	2400064-001	Public Supply	Single Well	0	POINT (1968290.923 592019.918)
1	2400099-001	Public Supply	Single Well	0	POINT (1969113.543 595876.691)

Last two rows:

	WELL_NAME	WELL_USE	WELL_TYPE	WELL_DEPTH	geometry
6035	NaN	Unknown	Unknown	0	POINT (1960933.648 610295.428)
6036	06S02W34B006	Observation	Single Well	152	POINT (1861394.207 597916.983)

Text(0.5, 1.0, 'San Francisco Bay Area County Boundaries and Well Locations')

Left Join#

We’ll first demonstrate a left join. Notice that all features from the left dataset (wells dataset) are kept. The features that did not meet the spatial relationship criteria for a join have NaN as values for the fields that originated from the right dataset (county boundaries dataset).

# Get inner join
left_join_result = gpd.sjoin(wells, counties, how = "left", op = 'within')

# Print head and tail of attribute table
display_table(table_name = "Left Join", attribute_table = left_join_result)

# Plot merge
plot_merge(merge_type = "Left Join", merge_result = left_join_result, merge_vector = "point")

Attribute Table: Left Join

Table shape (rows, columns): (6037, 7)

First two rows:

/home/mmann1123/.local/lib/python3.10/site-packages/IPython/core/interactiveshell.py:3400: FutureWarning: The `op` parameter is deprecated and will be removed in a future release. Please use the `predicate` parameter instead.
  if await self.run_code(code, result, async_=asy):

	WELL_NAME	WELL_USE	WELL_TYPE	WELL_DEPTH	geometry	index_right	coname
0	2400064-001	Public Supply	Single Well	0	POINT (1968290.923 592019.918)	NaN	NaN
1	2400099-001	Public Supply	Single Well	0	POINT (1969113.543 595876.691)	NaN	NaN

Last two rows:

	WELL_NAME	WELL_USE	WELL_TYPE	WELL_DEPTH	geometry	index_right	coname
6035	NaN	Unknown	Unknown	0	POINT (1960933.648 610295.428)	NaN	NaN
6036	06S02W34B006	Observation	Single Well	152	POINT (1861394.207 597916.983)	6.0	Santa Clara County

Right Join#

For a right join, all features from the right dataset (county boundaries dataset) are kept but are repeated multiple times. This is because a “new” county feature is created for every well point that falls within a county’s boundary. As a result, because wells must fall within the county boundaries for a join to occur on the county boundaries feature, there are no resulting features with NaN as values in the attribute table.

Attention

The results here are a bit useless, since it’s just each county boundary multiplied by the number of wells in that county, but we kept this example for comprehensiveness.

# Get inner join
right_join_result = gpd.sjoin(wells, counties, how = "right", op = 'within')

# Print head and tail of attribute table
display_table(table_name = "Right Join", attribute_table = right_join_result)

# Plot merge
plot_merge(merge_type = "Right Join", merge_result = right_join_result, merge_vector = "polygon")

Attribute Table: Right Join

Table shape (rows, columns): (1337, 7)

First two rows:

/home/mmann1123/.local/lib/python3.10/site-packages/IPython/core/interactiveshell.py:3400: FutureWarning: The `op` parameter is deprecated and will be removed in a future release. Please use the `predicate` parameter instead.
  if await self.run_code(code, result, async_=asy):

	index_left	WELL_NAME	WELL_USE	WELL_TYPE	WELL_DEPTH	coname	geometry
0	824	3S/2E 30D 2	Observation	Single Well	44	Alameda County	MULTIPOLYGON (((1860234.837 612219.122, 186007...
0	670	3S/2E 19D 8	Observation	Part of a nested/multi-completion well	260	Alameda County	MULTIPOLYGON (((1860234.837 612219.122, 186007...

Last two rows:

	index_left	WELL_NAME	WELL_USE	WELL_TYPE	WELL_DEPTH	coname	geometry
8	1697	AVCA-01	Residential	Single Well	100	Sonoma County	MULTIPOLYGON (((1746855.532 743026.706, 174685...
8	3508	11N10W08P001M	Residential	Single Well	30	Sonoma County	MULTIPOLYGON (((1746855.532 743026.706, 174685...

Inner Join#

Finally, with an inner join, only the well locations that fall within the county boundaries are kept. These well locations have the county boundaries dataset appended to them. Because it’s an inner join, there are no resulting features with NaN as values in the attribute table.

# Get inner join
inner_join_result = gpd.sjoin(wells, counties, how = "inner", op = 'within')

# Print head and tail of attribute table
display_table(table_name = "Inner Join", attribute_table = inner_join_result)

# Plot merge
plot_merge(merge_type = "Inner Join", merge_result = inner_join_result, merge_vector = "point")

Attribute Table: Inner Join

Table shape (rows, columns): (1337, 7)

First two rows:

/home/mmann1123/.local/lib/python3.10/site-packages/IPython/core/interactiveshell.py:3400: FutureWarning: The `op` parameter is deprecated and will be removed in a future release. Please use the `predicate` parameter instead.
  if await self.run_code(code, result, async_=asy):

	WELL_NAME	WELL_USE	WELL_TYPE	WELL_DEPTH	geometry	index_right	coname
128	NaN	Stockwatering	Unknown	40	POINT (1882982.865 701605.988)	7	Solano County
129	NaN	Irrigation	Unknown	240	POINT (1884096.112 699303.331)	7	Solano County

Last two rows:

	WELL_NAME	WELL_USE	WELL_TYPE	WELL_DEPTH	geometry	index_right	coname
1759	T2S/R5W-06M01	Residential	Single Well	275	POINT (1827410.559 644648.215)	4	San Francisco County
2316	Kirkham MW130	Observation	Part of a nested/multi-completion well	130	POINT (1823285.838 641661.323)	4	San Francisco County

1(1,2,3,4,5,6,7): Set-Operations with Overlay, GeoPandas
2(1,2,3,4): GIS Fundamentals: A First Text on Geographic Information Systems, 5th ed., Paul Bolstad
3(1,2,3): Merging Data, GeoPandas
4(1,2): Spatial Join (Analysis), Esri

Python Open Source Spatial Programming & Remote Sensing

Spatial Overlays and Joins

Contents

Spatial Overlays and Joins#

Setup#

Overlays#

Union#

Intersection#

Identity#

Difference (Erase)#

Merge#

Spatial Join#

Left Join#

Right Join#

Inner Join#
